Astron Farside

1981

farside My first rocket memories are of my dad showing my brother and me an unpainted 3-stage Estes Astron Farside when I was four.  My dad was big on simple paint schemes.  I recall orange overall (as in Testors competition orange) and perhaps a white nose cone, though maybe black was applied as well.  Shortly thereafter the rocket was painted and then flown from a local school, losing one of the lower stages.  The remaining stages were given to me, but that model was not flown again.  I credit that experience (thanks, Dad!) plus the first Space Shuttle launch as the primary inspirations for a life-long love of model rocketry.

c. 1986-87

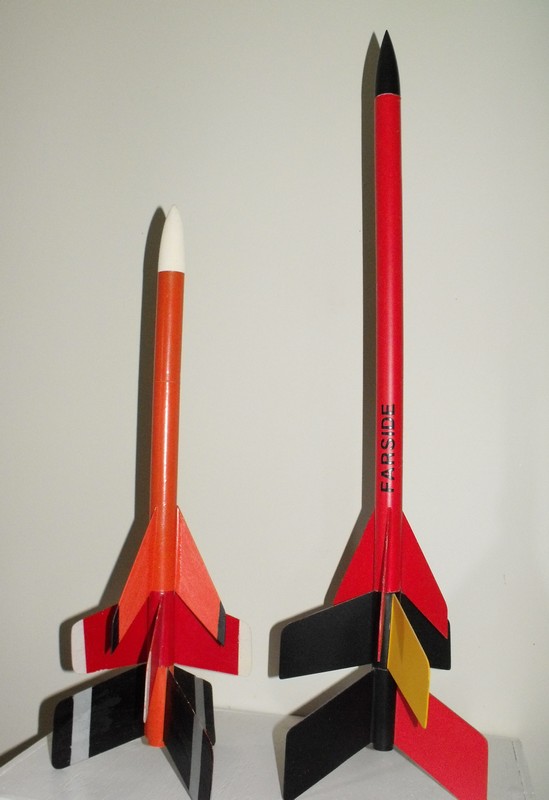

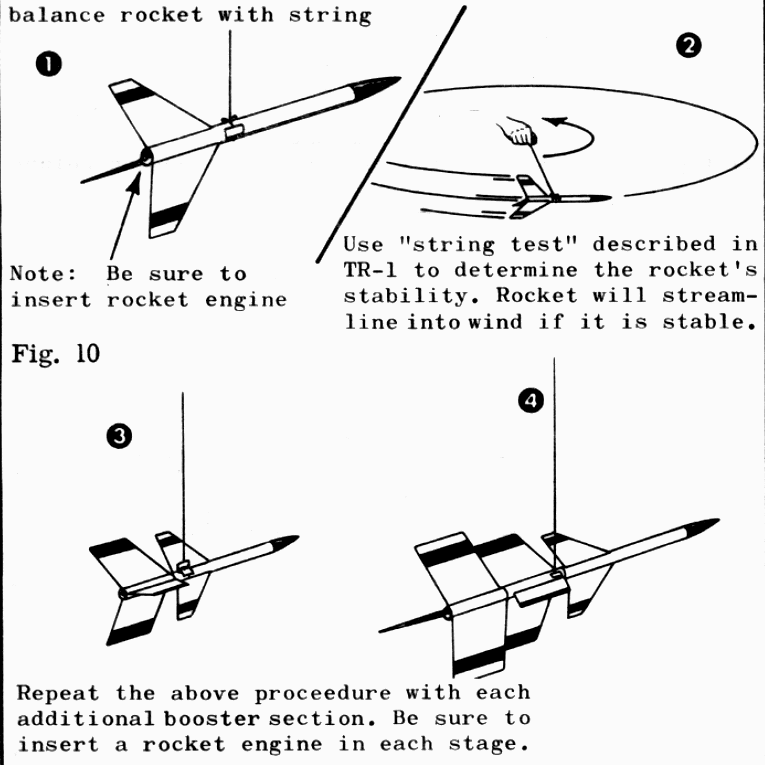

farside_2 tr-2_crop The Farside remained a favorite kit, and to my great surprise was discovered again at a local hobby shop which had all sorts of kits with older style cards (see example above) while I was still in elementary school.  I attempted to recreate the color scheme of my first rocket but with embellishments (I took my cues on detailing from the illustrations in the Estes Tech Report TR-2 on multi-staging that came with the kit–see Ninfinger.org link and cropped image to the right).  The first (or second) flight resulted in a lost upper stage, despite using the smallest available motors, leading me to rebuild the upper stage.  That was the first time I ever ordered from Estes’ parts catalog and the first time I ever had to cut a body tube.

2002

jessfarside Jess built her Farside in 2002 using the instructions from my old Farside kit, but substituting the balsa fins with 1/16″ basswood for ease of finishing using spray primer alone.  For her version, she eliminated the payload section entirely and lengthened the model using a stock 18″ BT-50 for the upper stage.  She also added a launch lug to the upper stage (normally only a long single lug on the second stage) to allow for single stage flying.  She gave the model a nice smooth finish by applying Testors Acryl paint with an airbrush.  So far, Jess has flown it several times with complete success, using a streamer for the third stage instead of a parachute (I highly recommend using a streamer to better ensure recovery of this high-flying design).

One of these days I may build another one, too.


Kit Instructions

Astron Farside & Farside-X (larger payload version) kit instructions are available at Jim Z’s website.  Note on upper stage body tube length:  According to a Body Tube Reference guide assembled by John Brohm, the BT-50H (upper stage body) is actually 7.75″ long, but the instruction sheet shows an incorrect length:

The kit instructions list the BT-50H as 7-1/2” long; this is clearly an error as this information is not consistent with the Parts Catalog listing or the actual measurement taken of the kit part.
