Argo D-4 Javelin — GSFC

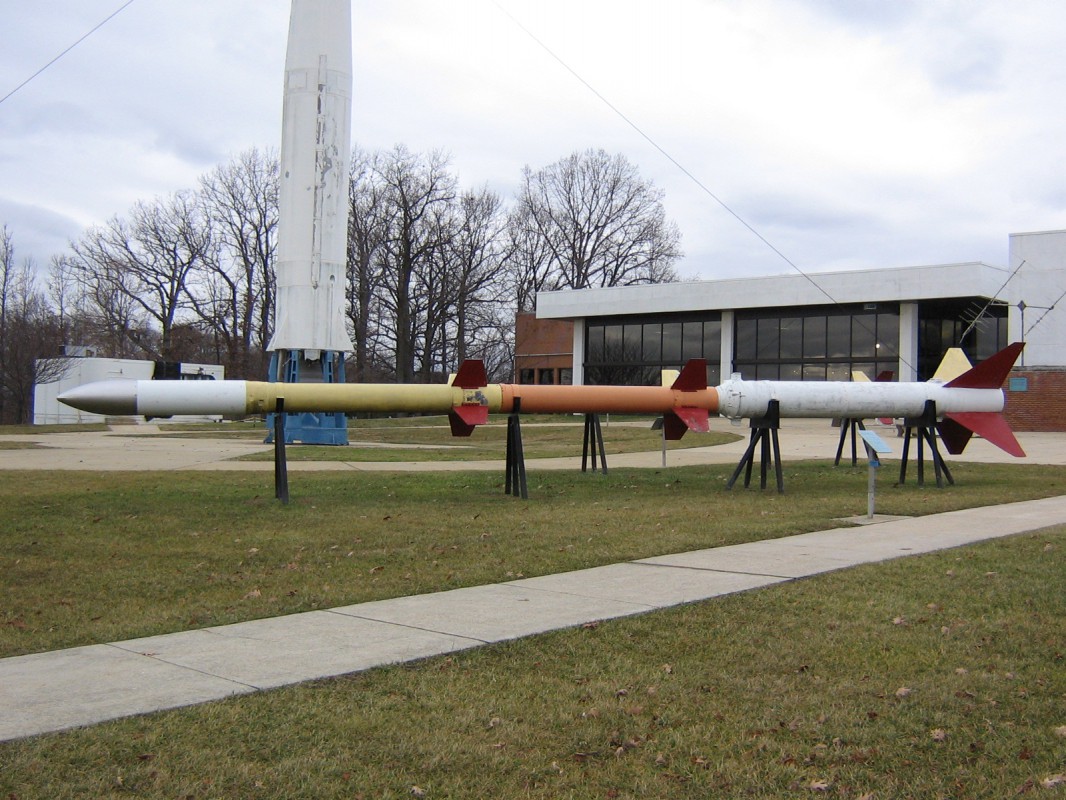

Javelin Display at GSFC Visitor Center

The following images were taken in 2006.  Note:  The launch lug configuration of the first stage is representative of a standard Honest John missile configuration.  A typical Javelin vehicle employed a shorter forward lug, removed the bolted ‘C’ hardware from the rear lug pairs, and had an extra stand-alone lug at the forward end of the nozzle shroud.
