Javelin 1st Stage (Honest John) Detail Photos

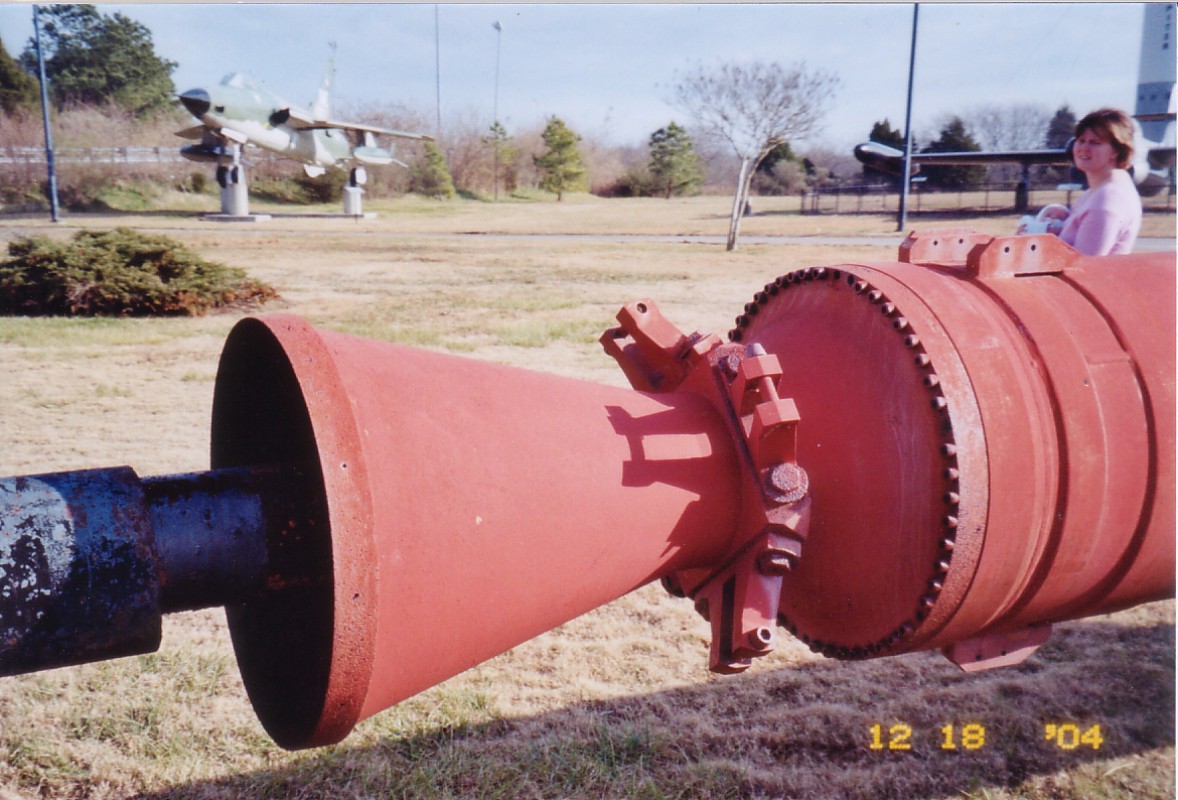

The following images of the Javelin’s 1st stage and adapter were taken by Josh at Air Power Park in Hampton, VA in 2003, 2004, and 2006.  Unfortunately, this display has since been removed from the park and (presumably) destroyed.

This display was of particular interest due to the lack of paint build-up, leaving the surface details fairly sharp.  Also, unlike the Javelin display at GSFC, this Javelin includes the appropriate launch lug configuration (minus a stand-alone lug at the bolted region forward of the nozzle).
